5.0mm Medical Grade PVC Preformed Nasal Endotracheal Tube With Cuff - X-Ray Line HVLP Balloon Sterile Nasal RAE Tube For Anesthesia

Description

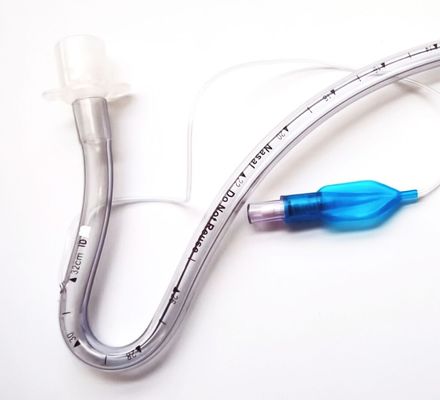

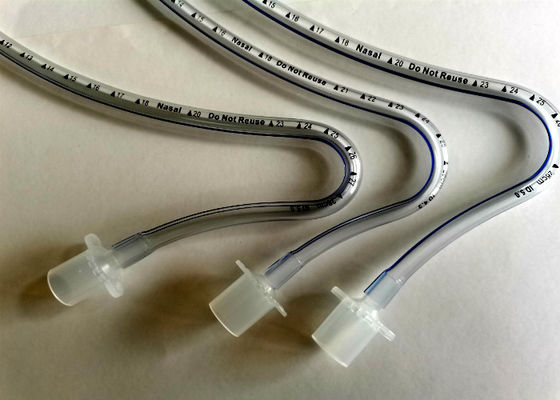

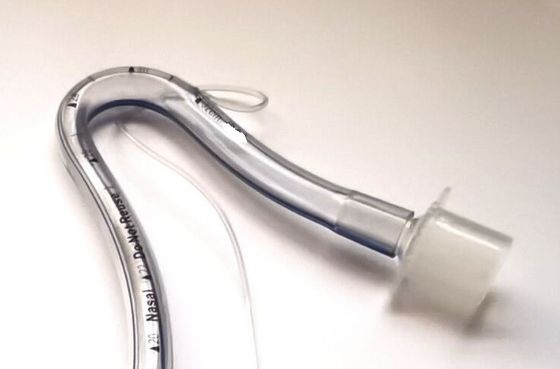

The Preformed Nasal Endotracheal Tube, commonly referred to as the Nasal RAE Tube, is a specialized airway management device designed specifically for nasal intubation. Manufactured from high-quality, thermosensitive medical-grade PVC, the tube softens at body temperature to conform to the patient's upper airway anatomy, significantly reducing nasal mucosal trauma. Its unique "North-facing" preformed curve ensures that the connector is directed away from the surgical field, making it the gold standard for oral, maxillofacial, and dental surgeries.

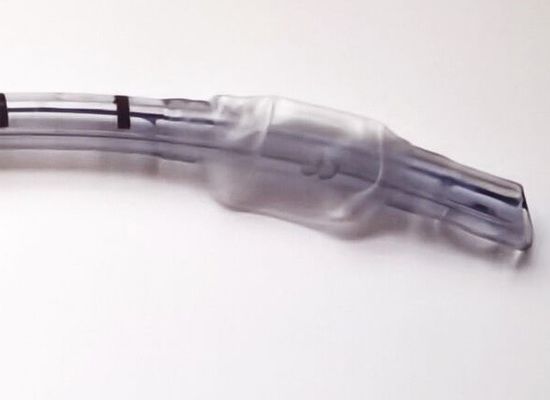

This model features a High-Volume Low-Pressure (HVLP) Cuff, which provides an effective seal at low pressures, protecting the tracheal wall from potential ischemic injury.

Intended Use

This device is utilized in general anesthesia, emergency medicine, and intensive care (ICU), particularly for:

1. Oral & Maxillofacial Surgery: Keeps the mouth clear for the surgical team.

2. Long-term Ventilation: Nasal tubes are often more stable and better tolerated by conscious patients than oral tubes.

3. Difficult Airway Management: When oral access is restricted or contraindicated.

Technical Specifications

Key Advantages

• Preformed Design: Minimizes the risk of kinking and ensures a patent airway while providing an unobstructed view for surgeons.

• Atraumatic Murphy Eye: A secondary ventilation port reduces the risk of respiratory obstruction if the primary tip becomes occluded.

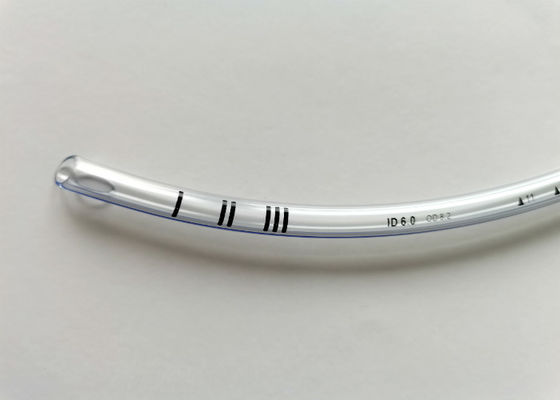

• Radiopaque Visualization: A continuous blue X-ray line allows for precise depth verification under radiographic imaging.

• Soft Tip: Smoothly finished distal tip reduces the risk of trauma to the nasal turbinates and tracheal mucosa during insertion.

• Universal Connector: Features a standard 15mm connector compatible with all anesthesia and respiratory breathing circuits.

Frequently Asked Questions (FAQ)

Q: What is the main advantage of a preformed tube over a standard ET tube? A: The preformed shape removes the need for bulky connectors near the patient's mouth, redirecting the circuit toward the forehead. This is crucial for maintaining a sterile and clear surgical field during head and neck procedures.

Q: Can this tube be re-sterilized? A: No. The product is clearly marked "Do Not Reuse." It is a single-use sterile device. Re-use increases the risk of cross-contamination and material degradation.

Q: Is the cuff necessary for pediatric patients? A: While uncuffed tubes are traditional for small children, cuffed tubes like this 5.0mm model are increasingly used to provide better tidal volume control and reduce gas leakage in modern anesthesia.
